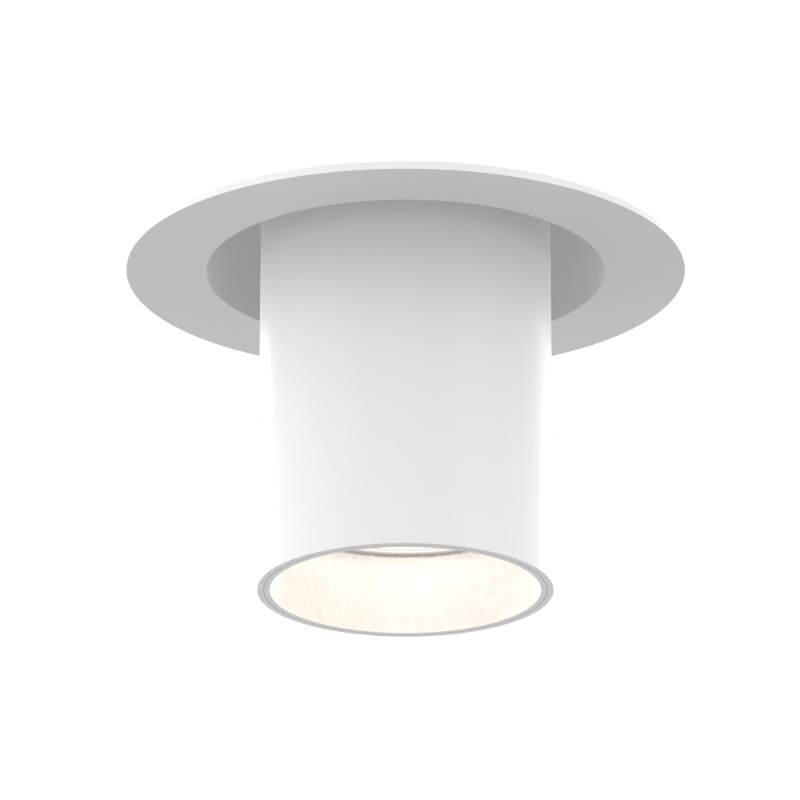

Integral housing adjustable recessed spot light.

Features

• Construction: Die-cast aluminum heat sink painted black. Trim, housing and junction box are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel
• Finish: Black, White
• Wattage: 11W
• Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Lumens: up to 965
• ELV Dimming: 100-5%
• CRI: 90
• Rated Life: 50000 Hours
• Beam: 25,45
• 25 vertical tilt and 350 horizontal rotation
• 30 visual cutoff for glare control
• Driver concealed within the fixture
• J-Box: Seven knockouts and four Romex style wiring connectors provided for ease of installation. Rated for branch wiring.
• Accommodates surface up to 1″ thick
• Non-IC Rated

Dimensions

• Width: 4.75″
• Height: 6.13″
• Cutout: 4.13″ x 4.13″


Lamping

• 11W LED
