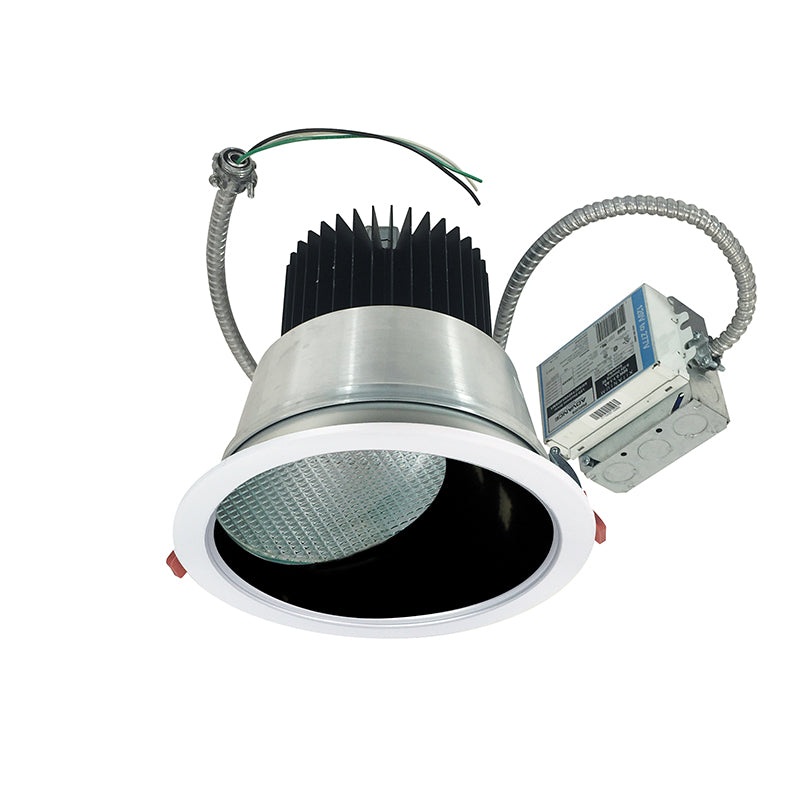

The Sapphire II COB Retrofit Series is an architectural grade LED high lumen replacement. Using existing commercial or architectural frame-ins, replace old light source and reflectors with the latest LED technology.

Features:

• Housing sold separately
• Wattage/ Lumens: 30W/ 2500 lm
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Beam Spread: Spot, Narrow Flood, Flood
• Driver: 120-277V Input; 0-10V dimming
• Reflector Finish: Black, Clear Diffused, Haze, White
• Flange Finish: Self Flanged
• Over 80% energy savings when compared to incandescent
• Reflector assembly is compatible with Nora 6″ Commercial and Architectural Frames.

Dimensions:

• Diameter: 7-1/2″
• Height: 8-3/4″
• Cutout: 6-1/4″ to 7″

Lamping:

• 30W LED, 2500 lm

Documents:

• Spec Sheet
• Instruction Sheet

Labels:
